The steering-wheel-mounted Sport Chrono dial is a defining control on many modern Porsche models. On compatible factory-equipped vehicles, it lets the driver select available drive modes without taking a hand from the rim, while PDK configurations may include a central Sport Response button.
When a steering wheel is rebuilt with carbon fiber, leather or microfiber, the dial must be retained as both a mechanical switch assembly and part of the vehicle's electrical control network. This guide explains the fitment checks, housing clearances, wiring and installation standards that matter when specifying a custom Porsche steering wheel.
Area | What must match | Risk if incorrect |
|---|---|---|
Rotary housing | Switch generation, spoke pocket and trim clearance | Binding, uneven detents or poor return action |
Center button | PDK-specific Sport Response assembly where equipped | Restricted movement or non-operation |
Electrical connection | Connector, pinout, harness routing and control module | Stored faults or unavailable functions |
Vehicle equipment | Factory Sport Chrono hardware and software | A physical dial that cannot activate drive modes |
Airbag interface | Correct core, center module and retention hardware | Unsafe or incompatible assembly |

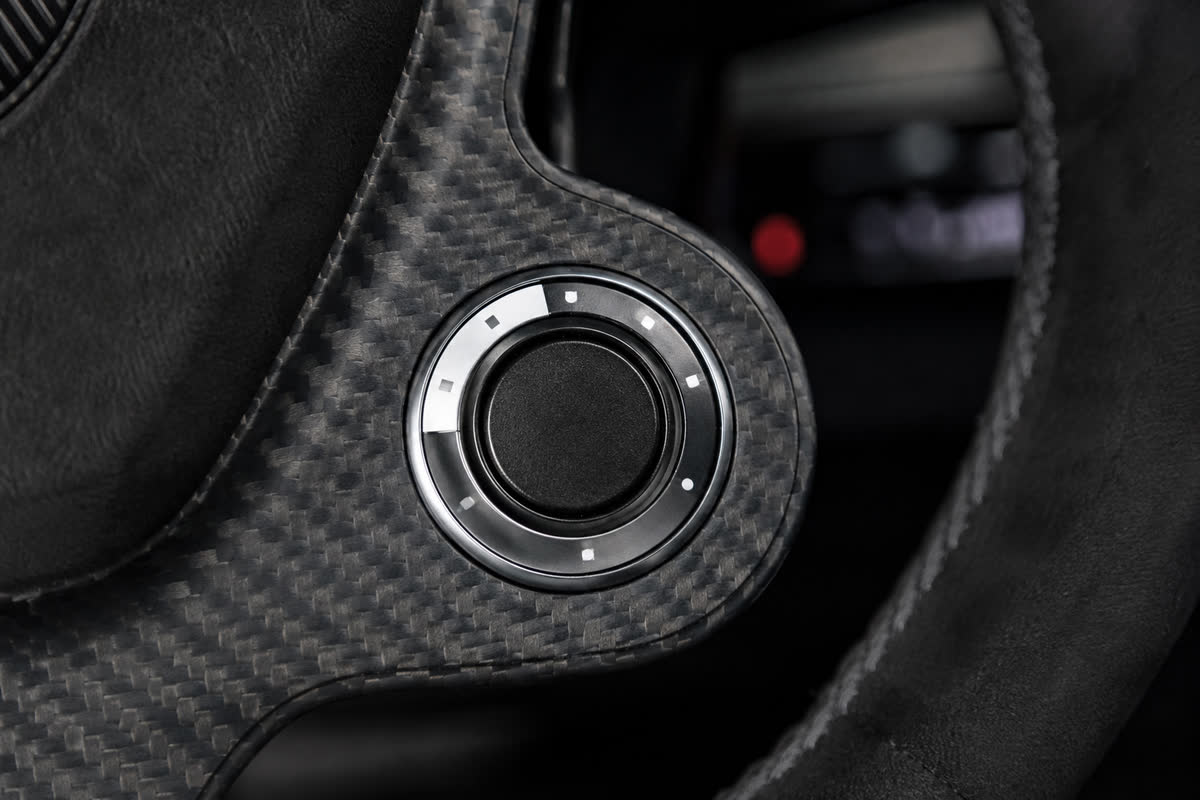

The dial combines a multi-position rotary control with an illuminated face and, on applicable PDK vehicles, a separate momentary push button. The exact internal design varies by generation. Each part must move freely after the spoke trim, upholstery and composite layers are completed.
The wheel-mounted switch sends a control request; the vehicle's instrument and powertrain modules manage the actual drive-mode functions. This is why transferring an existing compatible dial can retain the factory feature, while adding a dial to a car that never had Sport Chrono does not create the package by itself.
A rotary ring can bind when carbon layup, clear coat, leather edges or adhesive encroach on its working clearance. The required gap should be established from the actual switch and spoke components rather than from a universal measurement. The dial should have consistent clearance around its circumference and should index cleanly through every available position.
Surface finish also matters. Matte twill, gloss twill and forged carbon can have different layer thicknesses and edge-build characteristics. The completed spoke should be inspected before the switch is installed, and the central button should return without rubbing against the rotary bezel.
For chassis, wheel-shape and material planning, see our Porsche 911 991.2 and 992 custom steering wheel guide and the broader Porsche steering wheel generations guide.
The Sport Chrono assembly connects through the steering wheel's internal electronics and the rotating steering-column connection. Connector style, pinout and control-module expectations can differ between 991.2, 992 and related 718 applications. Similar-looking switches should not be treated as interchangeable.
When compatible original switchgear is transferred, the harness should follow the intended channels and strain-relief points. Cutting, splicing or pin reassignment should not be assumed necessary or acceptable. If an adapter or retrofit module is proposed, request a written explanation of its purpose and supported vehicle configuration.
A direct transfer uses the vehicle's existing compatible dial, switch modules and wiring in a wheel built for that exact configuration. Even then, the installer must verify operation and scan for faults after assembly. “No coding” should only be claimed after the specific vehicle and parts are confirmed.
A vehicle that did not leave the factory with Sport Chrono may lack required wiring, control-module support and software activation. A custom wheel can provide a physical mounting location, but it cannot supply the complete vehicle-side system. Consult a Porsche retrofit specialist before ordering a dial-equipped wheel.

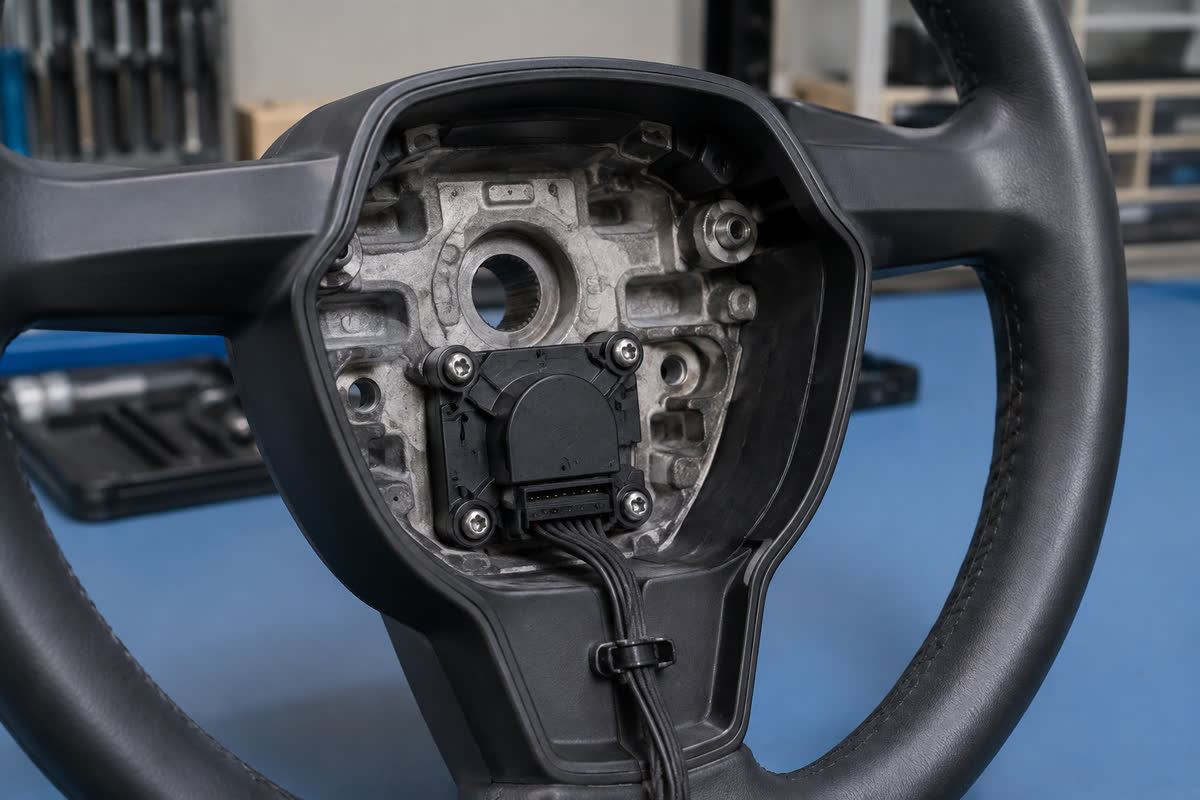

The dial assembly is secured from the rear of the spoke. Mounting bosses, screw type and switch-body alignment must match the component. Small fasteners should be tightened according to the applicable service or component instructions; over-tightening can distort plastic housings, while under-tightening can allow movement or noise.
The steering-wheel center houses the driver airbag, so removal and reassembly are safety-critical. A qualified technician should follow current Porsche service information for battery isolation, waiting time, center-module release, clockspring positioning, fastener replacement and tightening values. Do not rely on a fixed waiting period or universal torque value copied from another chassis.
After installation, verify the horn, multifunction controls, dial illumination, all rotary positions, the center button where equipped, paddles and heating. Complete a diagnostic scan for steering-column and restraint-system faults.
In a compatible factory-equipped vehicle, the wheel button acts as an input while the vehicle modules manage the timed function. A correct switch transfer should not redefine the vehicle's programmed countdown, but operation must be tested after installation.
Do not assume so. Dimensions, spoke profiles, connectors and electronics may differ. Confirm the generation and part configuration before production.
Potentially, when the rear housing, paddle mechanism and wiring are compatible. Magnetic paddles change tactile feel; they do not alter PDK control software or guarantee faster transmission response.
Warranty treatment depends on jurisdiction, vehicle age, dealer policy and whether a modification contributed to the reported failure. Ask the warranty provider about the exact planned modification before installation.
VIN, chassis generation, model and production date
Clear photos of the front and rear of the original wheel
Factory Sport Chrono equipment and dial style
Manual or PDK transmission
Heating, multifunction controls and paddles to retain
Preferred carbon finish, upholstery and center marker
