Views: 0 Author: YINGGENE Editorial Team Publish Time: 2026-09-13 Origin: Site
Porsche PDK magnetic paddle shifters are primarily a tactile and ergonomic upgrade. A well-matched mechanism can provide a more distinct breakaway point and a more deliberate return than a driver’s existing paddles. It does not, by itself, make the PDK transmission shift faster. Before ordering, separate the feel of the paddle from the response of the gearbox—and verify the steering wheel currently installed in your car.
This guide explains what to compare when choosing Porsche custom paddle shifters for a 911 or PDK-equipped 718. For the wider wheel assembly, start with our Porsche 911 steering wheel fitment guide.
Owners use this phrase for several different sensations: free movement before the switch triggers, flex in the blade, movement around a worn pivot, or an indistinct return. Those are not the same as a delayed or rejected transmission shift. A fault, warning message or intermittent gear request needs diagnosis before an aftermarket upgrade is considered.
Factory paddle designs vary by generation and wheel version. It is not accurate to describe every Porsche paddle as using the same spring, switch or actuation force. Compare the actual original assembly with the proposed replacement.
In an attraction-based magnetic detent design, magnets help hold the lever at its rest position. Pulling the blade separates the magnetic surfaces, while the pivot, stops and return arrangement determine the travel and reset. The result can be a distinct release followed by lighter movement, depending on the design. Some mechanisms combine magnets with other return components.
The force at your fingertip depends on magnet arrangement, separation, lever length, pivot friction and switch placement. A magnet grade alone cannot establish the finished paddle’s pull weight. Ask for measurements of the complete assembly and where on the blade they were taken. No universal gram-force number, zero-play guarantee or lifespan follows from the word “magnetic.”

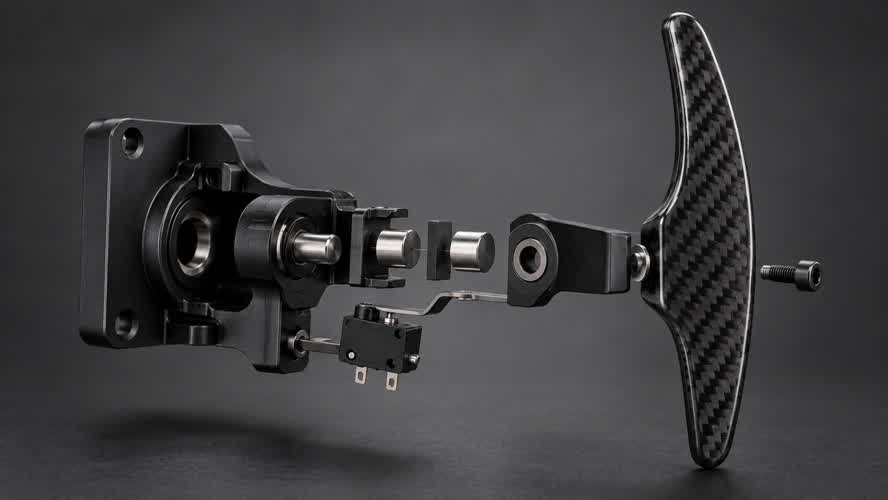

AI-generated mechanism illustration; component arrangement is conceptual, not an engineering drawing of a supplied kit.
A click confirms movement of the mechanism, not that the transmission has accepted the requested gear. Transmission controls and operating conditions still govern the shift. A stronger click also does not guarantee fewer missed shifts or audibility through a helmet in every cabin.
Option | What it changes | What to check |
|---|---|---|
Extension fitted to the existing paddle | Reach, contact area and appearance | Attachment security, added leverage, clearance and blade flex |
Replacement blade | Shape and material, with the original mechanism retained where specified | Mounting geometry, edge finish and compatibility with the pivot |
Complete magnetic paddle assembly | Detent feel and potentially travel, reach and return characteristics | Mechanical fit, switch behaviour, wiring and long-term serviceability |
Extensions are not automatically a poor choice: they may solve a reach problem without changing the original switch mechanism. Conversely, a larger carbon blade does not prove that the underlying assembly is magnetic. Ask exactly which parts are included.
For Porsche 911 carbon paddle shifters, inspect the laminate edges, fastening points and blade stiffness. For aluminium alternatives, inspect edge radii, finish and how securely the blade meets the housing. Materials alone do not establish a safe design or the preferred pull feel.
Obtain written specifications if a listing claims a particular alloy, magnet grade, sealed-switch rating or manufacturing process. These are product-specific claims, not characteristics of all Porsche magnetic shifters. For cockpit appearance, compare our matte versus high-gloss carbon guide; colour, weave and clearcoat should be judged using actual samples.

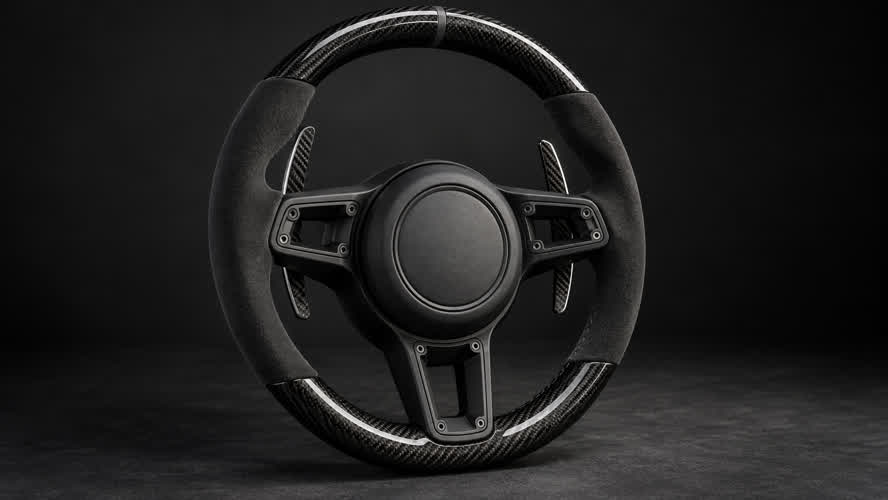

Illustrative custom configuration. Confirm the actual wheel, paddle geometry and included controls before purchase.
Model name alone is insufficient. A 718 Cayman GT4 paddle shifter upgrade requires a PDK-equipped car and the correct wheel assembly; a manual car does not gain gear-shift functionality by adding paddles. Porsche documents the optional seven-speed PDK alongside the standard six-speed manual for the relevant GT4 and Spyder update. See Porsche’s model announcement.
Confirm VIN, model year, market and transmission.
Provide clear front and rear photographs of the current wheel and identifiable part numbers.
Match the backplate, mounting points, connector, pin assignment and switch circuit—not just the connector shape.
Confirm space for the airbag, wiring, column controls and fingers throughout the steering range.
List every function to retain, including multifunction controls, heating and any mode selector actually fitted.

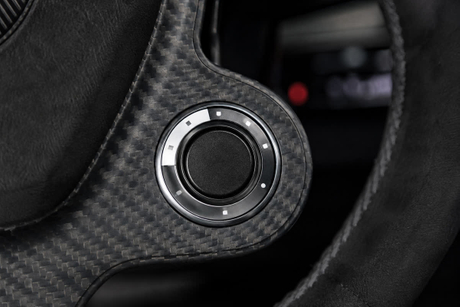

A like-for-like, electrically compatible replacement may not require coding, but that cannot be promised for every 991, 992 or 718 configuration. Cross-generation retrofits, including older 997/987 applications, require specialist assessment. Read our Sport Chrono dial retention guide if that control is part of your existing wheel.
Steering-wheel work involves safety-critical components, including the airbag and clockspring. Use a qualified technician following the current VIN-specific service procedure. This article does not provide a universal fastener torque or airbag-removal sequence.
After installation, the technician should verify secure mountings, smooth return, correct up/down requests, no wire interference, retained controls and the absence of relevant faults. A functional check is not crash certification of the modified assembly.
For U.S. owners, the FTC explains that using an aftermarket part alone does not automatically void warranty coverage; damage caused by that part or its installation may be excluded. This is not a guarantee that a specific claim will be covered. Check your warranty, service contract, insurer and local rules.
No transmission-speed improvement is established simply by replacing the paddle mechanism. Buy for verified ergonomics and tactile feel, not an unsupported performance promise.
“Cup-style” describes an appearance or concept unless documentation identifies a genuine part. It does not establish Porsche approval, competition certification or identical construction.
Send the VIN or confirmed build details, current-wheel photos, transmission type, preferred blade reach and finish, and the controls you want retained. Request confirmation of the complete kit and installation requirements before payment.
Explore our custom Porsche steering wheel collection or contact YINGGENE for a configuration check.
YINGGENE is an independent aftermarket supplier, not affiliated with or endorsed by Porsche. Vehicle names identify intended fitment, not OEM status. Compatibility and retained functions must be confirmed for the individual build. AI-generated images illustrate concepts, not supplied hardware, test results or certification.
